Stainless Steel ADA Braille Signs - Embedded Metal Dots & Etched Signage

[The Ultimate in Durability and Security] For projects requiring the highest level of longevity and vandal resistance, our Stainless Steel Braille Signs are the industry benchmark. Unlike standard signs with adhesive dots or UV-printed tactile text, this premium series features individually embedded stainless steel braille spheres. This mechanical inlay process ensures that the braille dots cannot be picked off, worn down, or damaged, making them the ideal choice for public transit, stadiums, and high-use commercial facilities.

[Precision Craftsmanship: The Embedded Advantage]

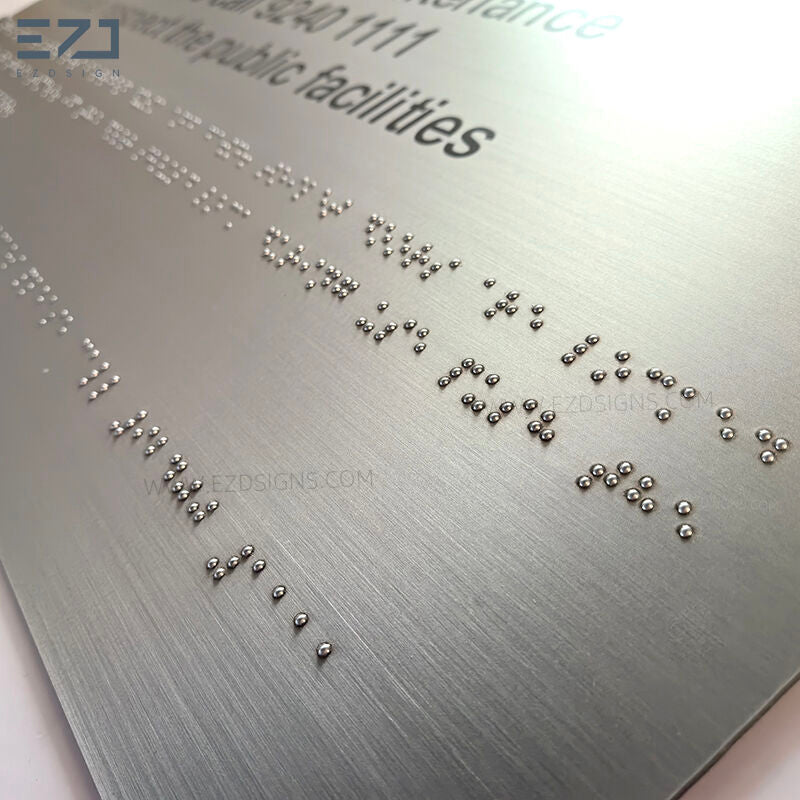

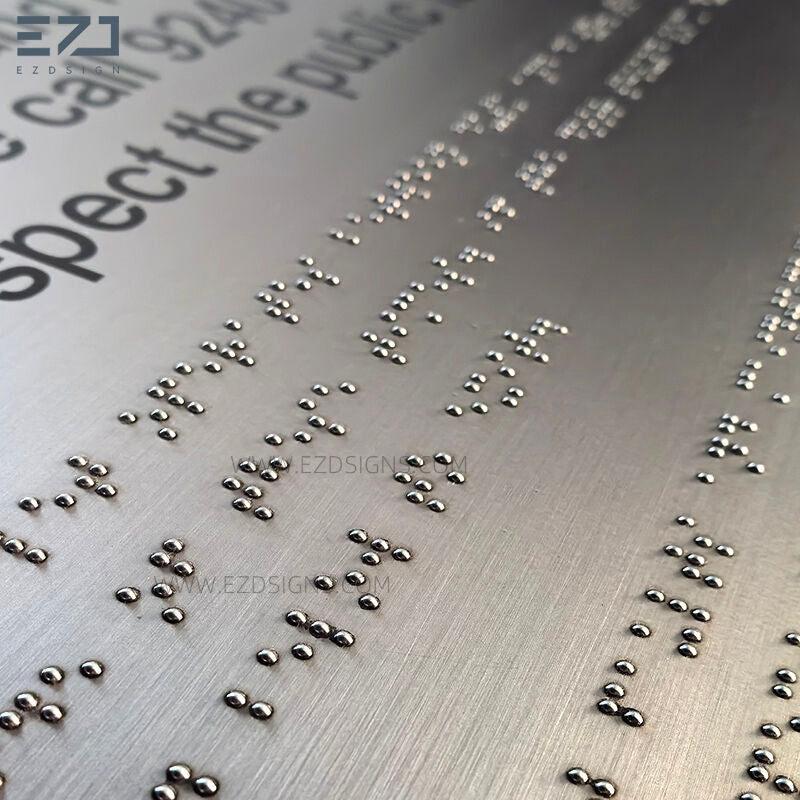

• Embedded Stainless Steel Spheres: Each Braille dot is a solid stainless steel ball, mechanically pressed into precision-drilled holes. This creates a permanent bond that withstands heavy physical contact and extreme cleaning protocols.
• Grade 304/316 Stainless Steel: Manufactured from architectural-grade stainless steel, offering exceptional resistance to corrosion, oxidation, and chemicals. Perfect for both indoor and coastal outdoor environments.
• Precision Etching & Infilling: High-contrast tactile text is deeply etched into the metal surface and infilled with durable epoxy resin, ensuring the text remains legible for decades.

[Compliance Without Compromise]

• ADA Grade 2 Standards: Every sign is engineered to meet the strict height, spacing, and diameter requirements of the Americans with Disabilities Act.
• Non-Glare Brushed Finish: The fine brushed texture provides a sophisticated look while eliminating glare, ensuring accessibility for those with low vision as per ADA guidelines.

[Technical Specifications]

• Material Base: 1.5mm / 2.0mm / 3.0mm Grade 304 or 316 Stainless Steel.
• Braille Process: Mechanical Embedding (Stainless Steel Spheres).
• Tactile Text: Etched and Paint-filled (Custom colors available).
• Standard Finishes: Brushed (Satin), Mirrored (Polished), or PVD Coated (Gold/Black/Bronze).
• Mounting: Concealed stud mounts for a flush, professional finish.

[Ideal Applications]

• Public Infrastructure: Subway stations, airports, and parking garages.
• High-End Corporate: Luxury office towers and government buildings.
• Hospitality & Residential: Upscale hotels and modern apartment complexes.
